Selection Of A Trash Rake Machine For Your Organization

Type and size of trash

  • a) First, we need to examine the type and size of trash that goes to your screen.

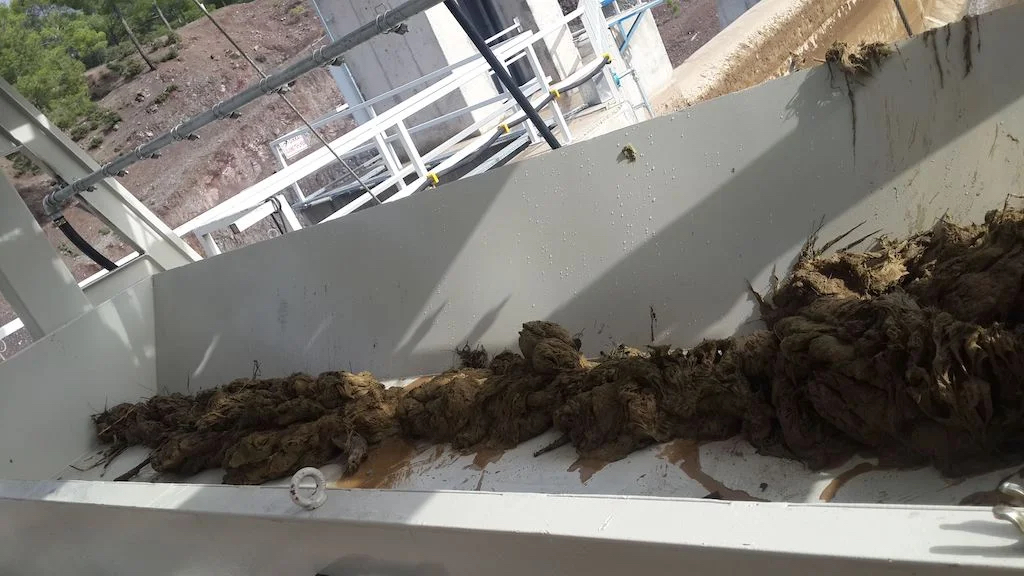

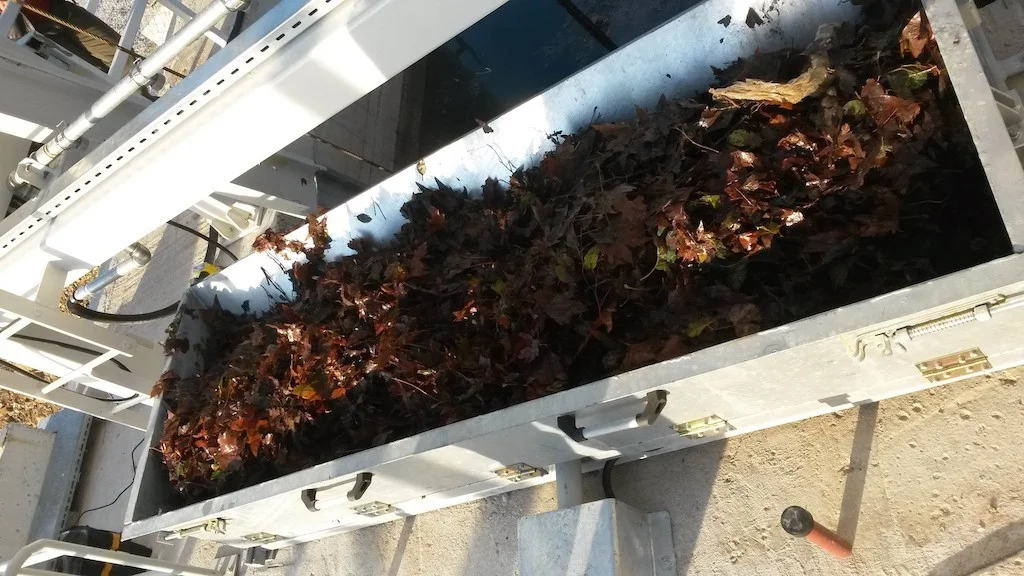

  • b) If the size of trash is less than 30 cm, the Harrow-type machine will be appropriate for you.

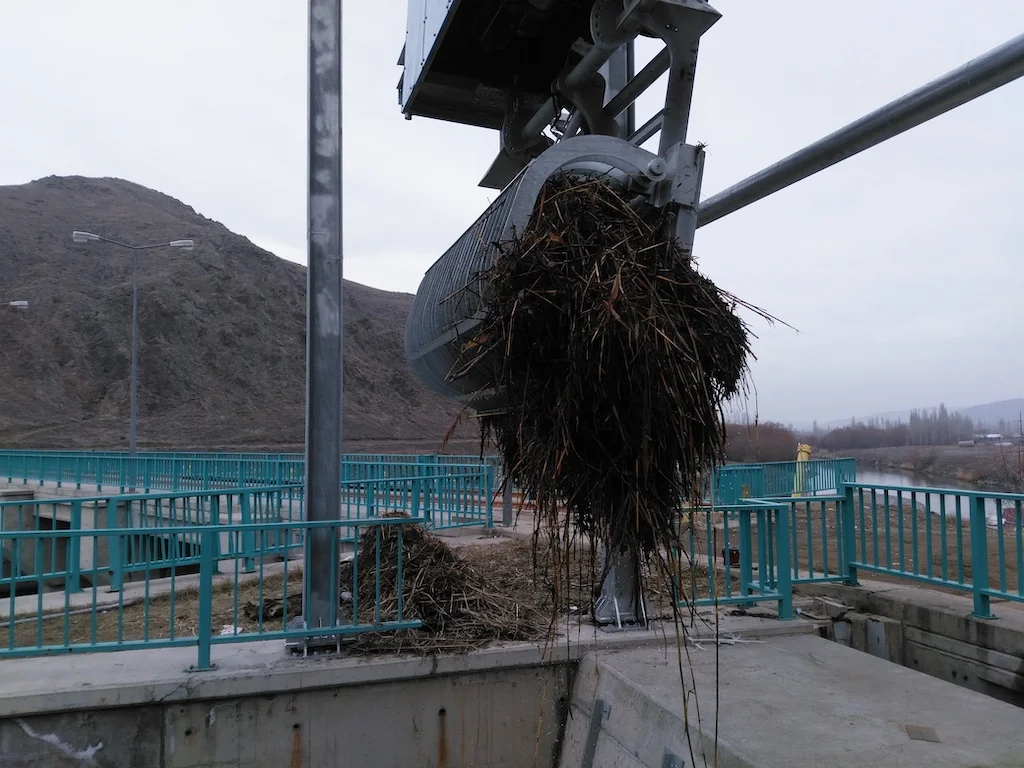

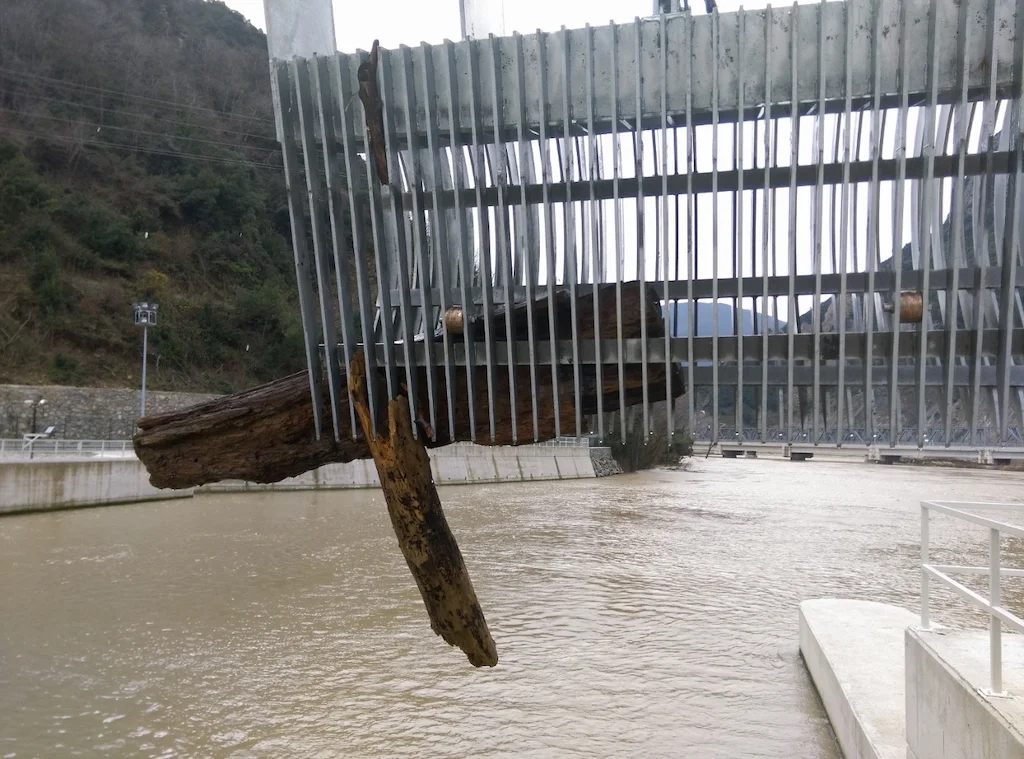

  • a) If the size of trash is more than 30 cm, the Scoop-type machine will be appropriate for you.

Location of screen

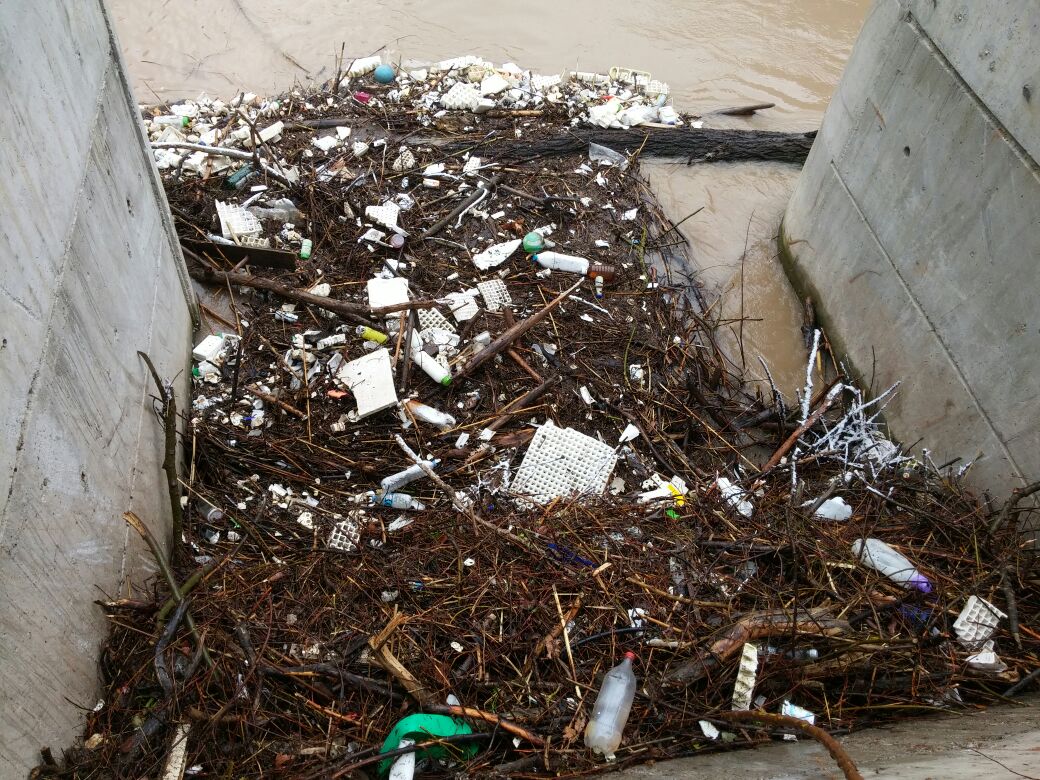

  • a) We recommend Scoop-type machine for the regulator screens. It is effective in removal of large-sized thrash that appears suddenly during the cleaning of sediments and deposits and at the time of flood.
  • b) We recommend a Harrow-type machine for the penstock pipe inlet screens. The penstock pipe inlet screens, which are always the secondary screens, are effective in removal of small trash that escapes from the other screens or comes from the long transmission channels.

Size of the area where a Trash Rake Machine is installed

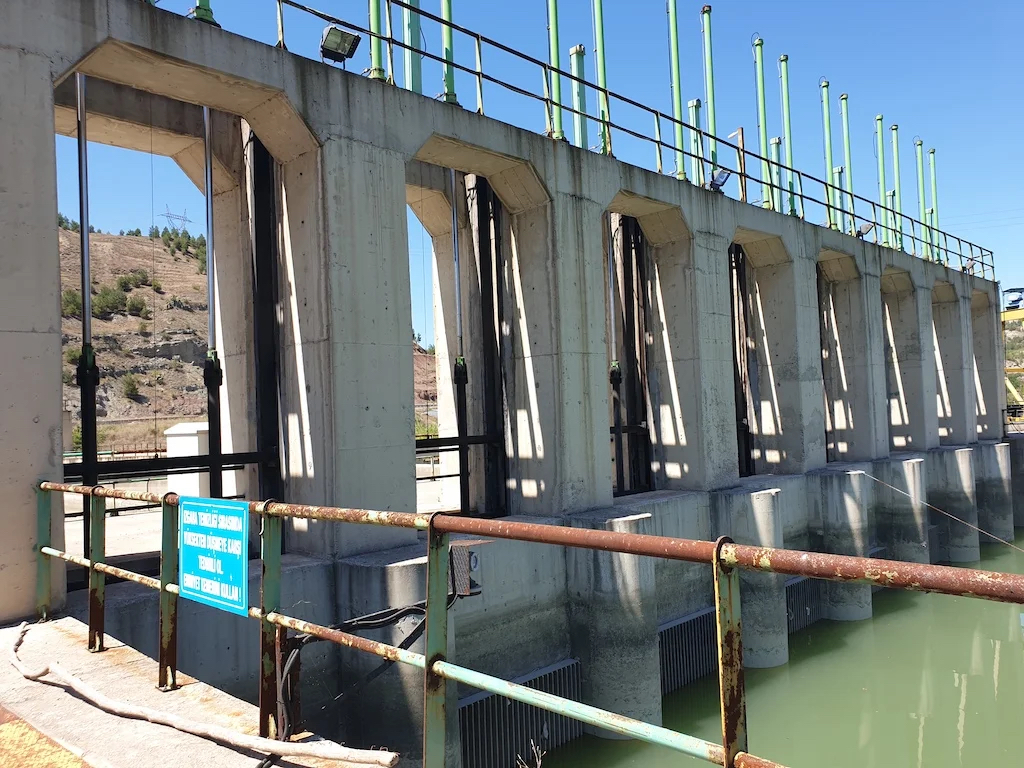

  • a) The Scoop-type machine is more suitable in structures where permanent equipment is placed tightly. A Scoop-type machine can even be positioned on an area in 50 cm width depending on the angle, size and similar values of the screen on the structure.

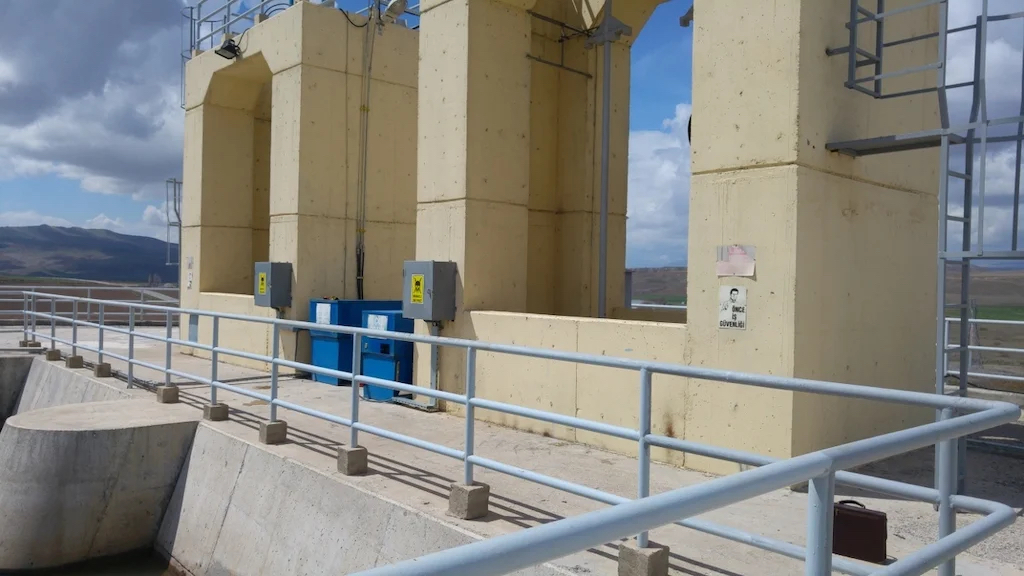

  • b) A Harrow-type machine requires minimum 100 cm width on the structure.

What is Susamuru?



Trash Rake Machine IS NEW NAME…

We named the Trash Rake Machine, which we chose as our main line of business, Susamuru . These hard-working animals of the streams have similarities with the machines we produce. Working constantly, they clean and shape streams. Our machines clean your waterways without requiring any personnel. How and how often you want.


THE LIFE WATER OF YOUR BUSINESS WILL ALWAYS CLEAN …

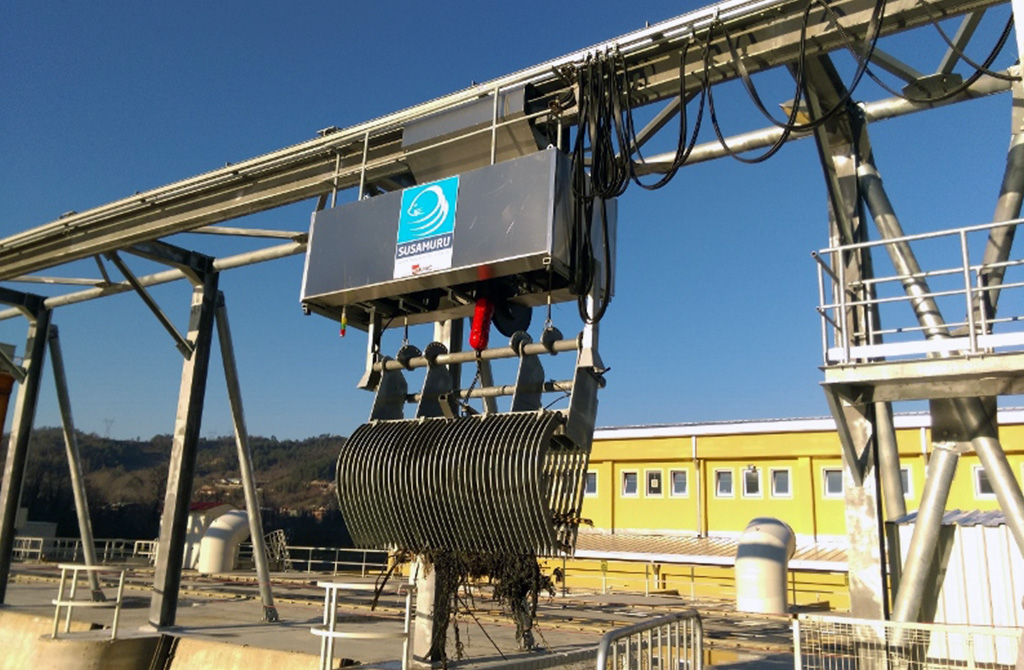

Trash Rake Machine ”Susamuru” Features

  • There are three options for operation: Automatic, semi-automatic and manual.
  • The manual operation is very simple.
  • Automatic operation settings are very easy to perform on the touchscreen.
  • It contains many protection systems to protect the operator and the machine. The worker’s safety is at the utmost level.
  • It has a robust and sufficiently simple mechanical construction and is not easily failed.
  • It employs the most effective protection methods against the corrosion that is caused by the contact with water and friction.
  • It provides alternative solutions depending on the current type of screen trash and problem. The priority and problems of organizations are known.
  • As an example for responding to different needs of organizations: A Harrow-type Machine with Conveyor has been designed and put into service to quickly remove the hays brought by the flood at the EÜAŞ Kepez HEPP Storage Reservoir Screen. With this machine, the trash is not stored in a container, but the trash collected into a container is transferred onto the conveyor to carry to the trash dump.
  • This machine is used by almost 50 organizations in Turkey and exported to foreign countries. There is an accumulated experience.

Contact Us

Phone

+90 312 385 98 88

E-Mail

info@mekare.com.tr


We'll Call You

Benefits Of Use Of Susamuru By Organizations

“Susamuru”, The Trash Rake Machine, Allows To Enhance Efficiency

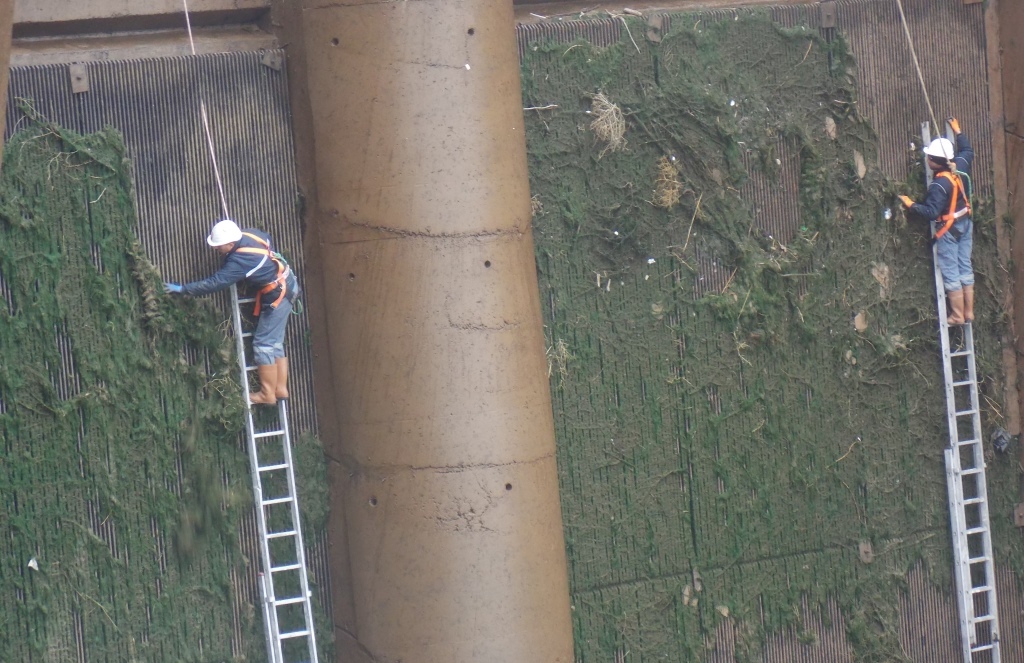

“Susamuru”, The Trash Rake Machine, Makes A Vital Contribution To Workers’ Safety And Health:
